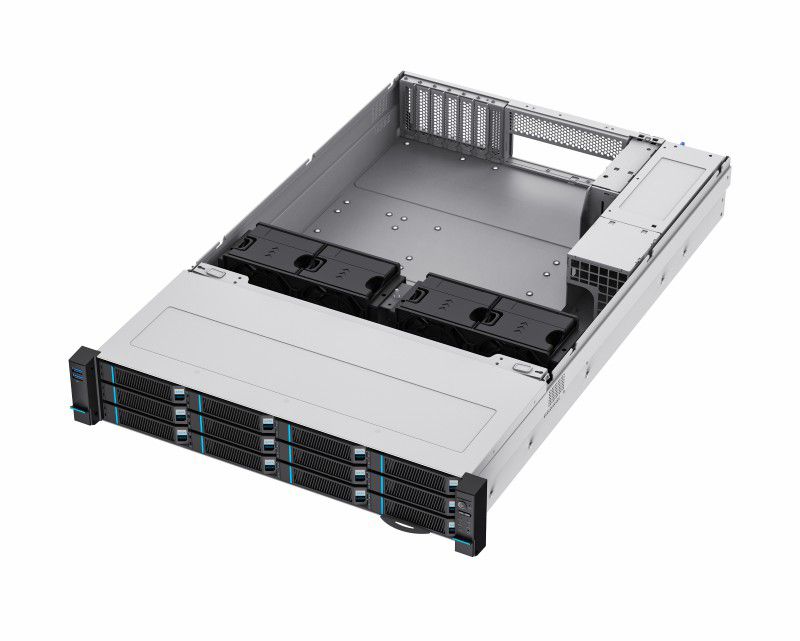

i5000WX (2U Rack Mount)
Key Features
- Intel® high-performance workstation W680 chipset, supports Intel 12th/13th and 14th generation processors.
- 4 x DDR5 UDIMM memory slots, supports up to 128G memory, memory read and write speed.
- Premium build quality
- 1 standard PCIe 5.0 x16 (x16 slot), 2 standard PCIe 4.0 x4 (x8 slot) Slot), 1 standard PCIe 3.0 x4 (x4 slot) for flexible expansion.

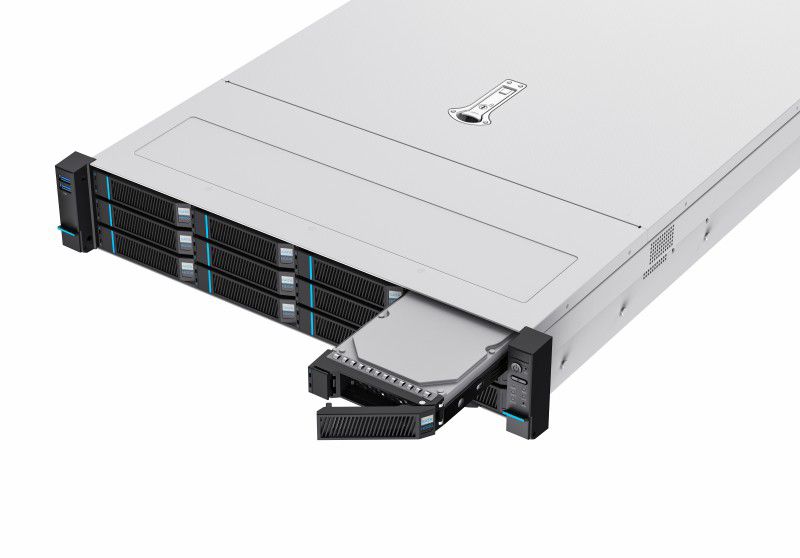

- 8 hard disks, storage type supports 6G SATAIII, providing a variety of storage for enterprise applications Solution.
- 2 Intel® 2.5G network interfaces and 1 network management interface, providing a variety of Network transmission and communication solutions
- IPMI, hardware monitoring, remote monitoring of host power, voltage, temperature, fan and other hardware Working status.
- Compatible with single PSU 500W or CRPS 550W/800/1300W
- TPM 2.0, lockable chassis with intrusion detection, self encrypting drives
System Master | CPU:- ADL-S platform Intel 12th/13th & 14th generation Core processor Bridge piece:- Intel® W680 Chipset |
Graphics | Chip:- ASPEED AST2600 BMC Interface:- 1 x VGA,1 x DP,1 x HDMI |
Memory | Type:- 4 UDIMM memory slots; support up to DDR5 4800/5600MT/s Memory capacity:- Support up to 128GB Memory size:- 8GB,16GB, 32GB |
Network | Controller:- Intel i226 Enterprise Network Controller 2.5G Network:- 2 x RJ-45 2.5GbE LAN ports, support 10/100/1000/2500Mbps IPMI management interface:- 1 standard RJ45, 10/100/1000Mbps network interface |
Storage | Sata:- 8 SATA3 6Gb/s ports, support Raid 0, 1, 5, 10 M.2 :- 1 M.2 2242/2280 interface, support PCI-E 4.0 x4; 1 M.2 2280 interface, support PCIE3.0 x 4 |
Expansion Slots | -1 standard PCIe 5.0 x16 (x16 slot), 2 standard PCIe 4.0 x4 (x8 slot) -1 standard PCIe 3.0 x4 (x4 slot) |
Backplane I/O interface | - 1 x IPMI management port, 5 x USB 3.0 ports, 2 x RJ-45 2.5GbE LAN ports, 1 x type-C port - 1 x COM port, 1 x UID switch (with LED light), 1 x audio port, 1 x VGA port, 1 x HDMI port, 1 x DP port |
I/O Interface | -1 x front COM port pin, 5 x 4-pin fan connectors, 1 x chassis opening detection connector, 1 x Audio pin (connected to the front panel) - 1 x 24-pin power connector + 8-pin power connector + 8-pin reserved power connector - 1 x USB 3.0 pin header, supports up to 2 devices; 1 x USB 2.0 pin header, supports up to two devices, 1 M.2 2242/2280 interface, supports PCI-E 4.0 x4; 1 M.2 2280 interface, supports PCIE3.0 x 4; 1 x USB3.0 Type A; 2 x GPIO headers |
Operating system | Windows Enterprise 64 Bit / Linux |
Configuration Services | - Factory Pre loaded Operating System - BIOS customization - Hardware customization |
Temperature and humidity requirements | Working humidity requirement:- 8%~90% without condensation Storage temperature:- -40~70 degrees Celsius Non-operating humidity requirement:- 5%~95% without condensation |
Keyboard & Mouse | USB keyboard and Optical Mouse |
Warranty | 3 to 5 year Limited warranty |
