i1000BTS – Embedded Thin Client Solution -INP


Embedded Thin Client (x86)
Low Power Consumption
VDI Terminal

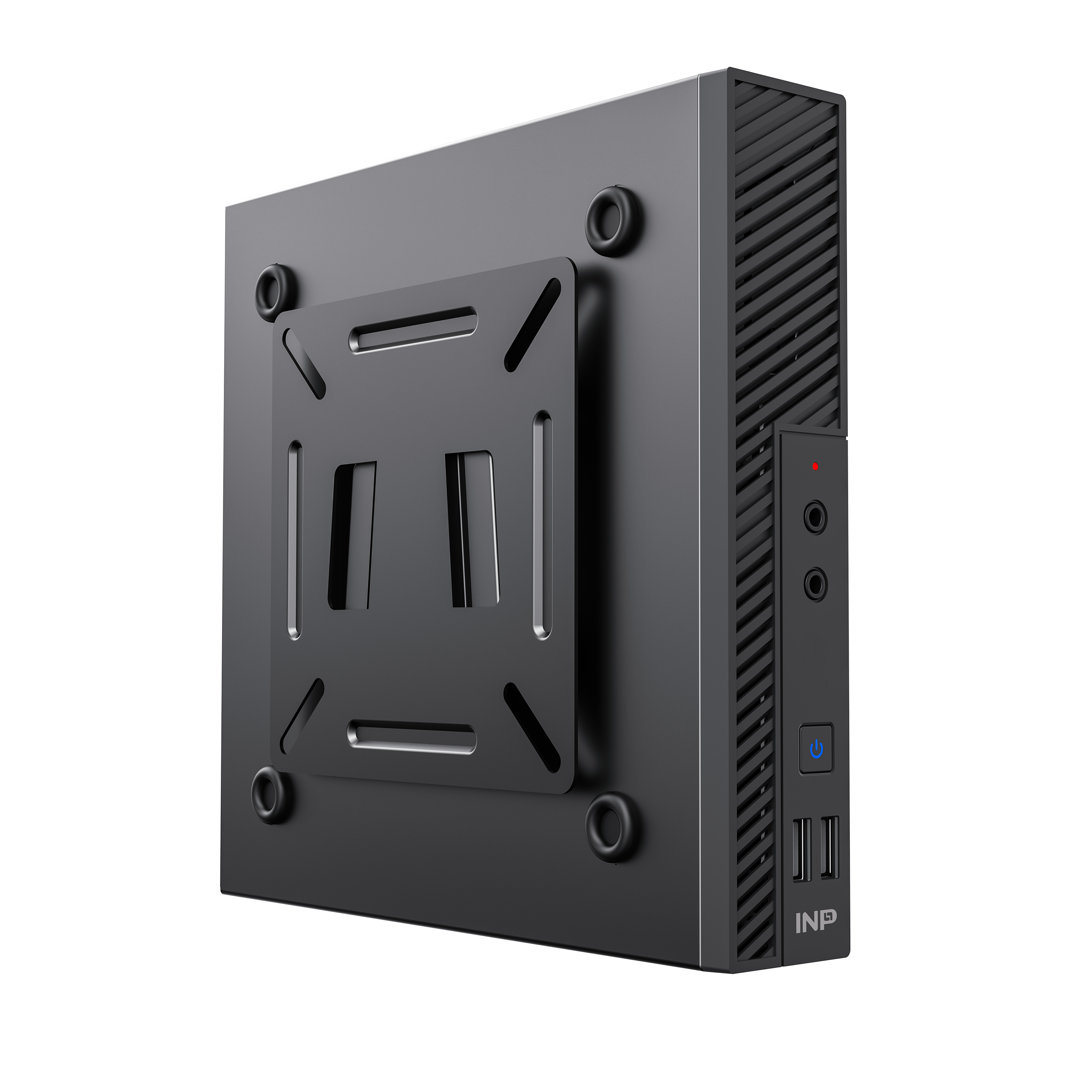

Vesa Mounting
OS Flexibility
Legacy Ports
Local Application
Cloud Terminal
Suitable for
Banking & Finance
Back office
Toll Plaza

Replacement Warranty 1 year to 7 Year

Category: .

Device specification


Intel (BayTrail) Celeron 2.3 Ghz Dual Core / Quad core (J1800 / J1900)

OS Support

Win 7 Embedded, Windows 8 Embedded, INP Embedded Linux


DDR3, 1066MHZ, (1 x So-DIMM slot, up to 8GB)


Realtek RTL8111E, 10/100/1000 Mbps LAN (Dual LAN Optional)


Realtek ALC-662


2x SATA port, MINI PCI stol for M-SATA
SATA DOM or mSATA ( 1GB to 128GB) or 500GB 2.5inch SATA HDD

WLAN Support

For 802.11 b, g, n (optional)

Display Interface

Supports DirectX® 11
Supports Full HD 1080P Blu-ray / HD-DVD Playback

Front I/O

2 x USB, MIC-in, Headphone-out, power button

Rear I/O

2 x PS/2, 4 x USB, 1 x Ethernet RJ45, VGA, HDMI, 1 x DC jack, 1 x Kensington lock

Power supply

65W worldwide auto-sensing 100-240 VAC 50-60Hz surge-tolerant power supply


Humidity: 20%~85% Non-Condensing MB
SystemTemp: 10 Degree C~ 60 Degree C
Temp: 0~60 Degree C

Regulatory Compliance


 Operating system Microsoft Windows Embedded Standard 2009
Microsoft Windows XP Embedded
Microsoft Windows 7 Embedded
Microsoft Windows 8 Embedded
Client software Latest Citrix Receiver,Citrix Desktop Delivery Controller enabled through web browser,Microsoft RDP 7.x, Microsoft Internet Explorer 8, Windows Media Player 11,Latest VMware Horizon View Client & PCoIP
Protocols(Client Virtualization) Microsoft RDP,Citrix ICA / HDX,VMware Horizon View through PCoIP or RDP
Browser supported Internet Explorer 8 , IE9 , IE10 or IE11, Mozila Firefox
Other Features TCP/IP with DNS and DHCP,Point-to-Point Protocol (PPP), Direct Connection through RS-232, Point-to-Point over Ethernet (PPPoE),Point-to-Point Tunneling Protocol (PPTP), Layer-2 Tunneling Protocol (L2TP), Wake on LAN (WOL), PXE,Server Network Time Protocol (SNTP),Simple Network Management Protocol (SNMP)
Display Dual Monitor Support
Security features Enhanced Write Filter and File-based Write Filter,administrator and user passwords,Microsoft Firewall (available as add-on),smart card support , Biomatric Device support
Management Remote Management Software ( Sold As separate License)
Host environments Citrix XenApp 4.5 , 5.x, 6.x & 7.x, Citrix XenDesktop 2.x and 3.x,Windows Server 2008 Terminal Services, Windows 2000/2003 / 2008/2012 R2 Server families,Windows 2000/2003 /2008/ 2012R2 Server Terminal Services, blade PCs,blade workstations, web applications, mainframes (terminal emulation)
Additional components Microsoft Windows Media Player v12.0, Microsoft .NET Framework 2.0 SP2, 3.0 SP2 & 3.5 SP1
Local Application Local Applications can be install ( e.g. SAP, Oracle, JAVA Etc)
OS customisation  Free OS customisation under warranty
Operating system INP Embedded Linux
Kernal Version Latest Kernal, Base OS Ubuntu
Client Software Rdesktop, XfreeRDP, Citrix ICA, CITRIX HDX ready,PNA agent, Vmview 3.2, VM horizon PCoIP 3.2, Firefox, x11 / XDMCP,SSH, Text Editor, VNC, Shell Script, VPN (PPTP), VLC Player,Thunderbird, Skype, Open office, Ericom Webconnect, Acrobat Reader.
Server OS Compatibility/Support Microsoft Windows Terminal Server Edition,Windows Server 2003/2008 / 2012 R2,Citrix XenApp / Citrix Presentation, Server/ Citrix XenDesktop,Protocol Support :TCP/IP, NTP, DHCP, FTP, HTTP.
Configuration Boot from local flash,User Interface: Kisok mode (Default) and Desktop mode,User interface language: US English, Indian Languages,Supports Active Directory Authentication,Supports different Keyboard Layouts,Scanners & Camera Support,Touch screen Support,USB input devices support,Biomatric devices,Local Printing
OS customisation Free OS customisation under warranty
